Name: Edge Dagger LED Module (ED6) - Clear Lens
SKU: 4067
Availability: InStock

At only 85.46mm wide x 12.86mm deep x 26.56mm high this module is perfect for installation in the grille, at the top of the front and rear windscreens or running around the underside of the vehicle bodywork.

Available in single colour blue, red, amber and white. Also available in independently switchable blue/white and blue/red.

Supplied complete with a selection of mounting brackets for a variety of fixing options.

Discreet versions in blue and white with smoked lenses now available!

Available in single colour blue, red, amber and white, and independently switchable dual colour Blue/Red and Blue/White
Supplied complete with adjustable mounting brackets
Long life LEDs rated to over 100,000 hours of operation
28 flash patterns
Last flash pattern recalled on power up
Multi-unit synchronisation in simultaneous or alternating flash
Weatherproof and vibration resistant
Suitable for internal and external use
Aluminium base for heat dissipation
12/24 volt operation
Blue, red and amber with clear lenses conform to ECE R65 Class 2
Dual colour versions conform to ECE R65 Class 1
All modules conform to ECE R10

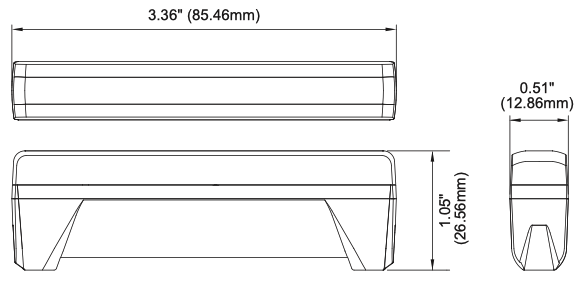

Dimensions

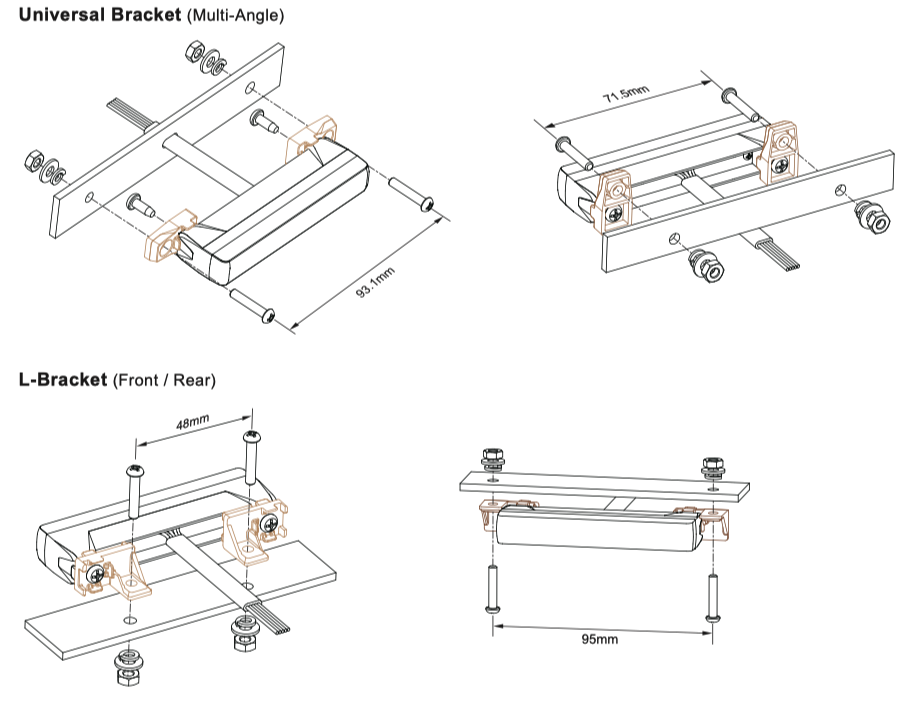

Mounting Options

Nominal Voltage: 12/24 VDC
Current consumption: Average Current: 0.6A @12VDC / 0.3A @24VDC, Single Color
0.3A @12VDC / 0.15A @24VDC, Dual Color
(varies with flash pattern)
Max. Current: 1.2A @12VDC / 0.6A @24VDC, Single Color
0.6A @12VDC / 0.3A @24VDC, Dual Color
Power consumption: Average Power: 7.2W, Single Color
3.6W, Dual Color
(varies with flash pattern)
Max. Power: 14.4W, Single Color
7.2W, Dual Color
LED Colour: Amber, Amber/White, Blue, Blue/Red, Blue/White, Red, White
Lens Colour: Clear
Number of LEDs / LED Modules: 6
Flash Patterns: 28 Built-In for Dual Color; 18 Built-In for Single Color
Synchronisation: Yes up to 20 units
Mounting: Mounting brackets included
Length: 85.46mm
Width: 26.56mm
Height: 12.86mm
Operating Temperature: -40°C to +65°C
Storage / Transport Temperature: -40°C to +75°C
Protection Class: IPX8
Approvals: ECE R10, ECE R65 Class 2 (Single Colour), ECE R65 Class 1 (Dual Colour)

Flash Patterns
1	Double (R65)	11	Ultra (Split)	21*	Single H/L
2	Single (2Hz)	12	Single-Quad (Split)	22*	Steady Half
3	Triple (2Hz)	13	Single H/L (Split)	23*	Steady All
4	Quad (2Hz)	14	Single (SAE)	24*	7-1 Flash
5	Random	15	Double (SAE)	25*	7-1 Flash Inverted
6	Single (Split)	16	Quad (SAE)	26*	Quad-Single
7	Double (Split)	17	Quint (SAE)	27*	Quad-Single Inverted
8	Quad (Split)	18	Mega	28*	Quint-Quint
9	Quint (Split)	19*	Ultra (SAE)
10	Mega (Split)	20*	Single-Quad		*dual colour models only
